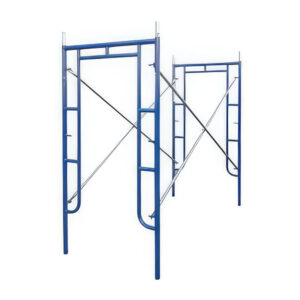

S-Style 42″ X 6’4″ Walkthru Set w/ 7′ Bracing

SKU: SFW42X64SET7

Our S-Style 42″ Walkthru Scaffold Set is designed for narrow spaces where standard frames won’t fit. With one ladder rung and gravity flip locks, it’s versatile and suitable for various setups.

*Matches and stacks with Safway pattern scaffolding.

$174.08

This scaffold frame is perfect for narrow spaces where a standard 5′ wide scaffolding would not fit. This frame allows someone up to 6′ tall to walk easily underneath unobstructed. However, this frame does not allow the same freedom of board placement as other sets.

This can be a great base for any sidewalk scaffolding/shed set-up.

Our 42″ x 6’4″ walk-through frame meets and/or exceeds all OSHA regulations.

This frame has one ladder rung and uses our gravity flip locks.

To maximize the life and longevity of our scaffold frames we apply a vibrant high clarity blue powder-coating.

Weight 105 lbs
Frame Dimensions

42" W X 6'4" H

Distance Between Frames

7'

Frame Tube Outside Diameter

1.69 in.

Frame Tube Wall Thickness

.095"

Brace Lock Spacing

48"

Load Capacity

3500 lb

Stack Pin Length

9"

Stack Pin Outside Diameter

1.375"

Frame Pattern

S-Style

Frame Type

Narrow, Walkthru

Included

Included:

  • (2) S-Style 42″ X 6’4″ Walkthru Frames
  • (2) 7′ Cross Braces
  • (4) Galvanized Stack Pins
  • (4) Galvanized Spring Rivets
