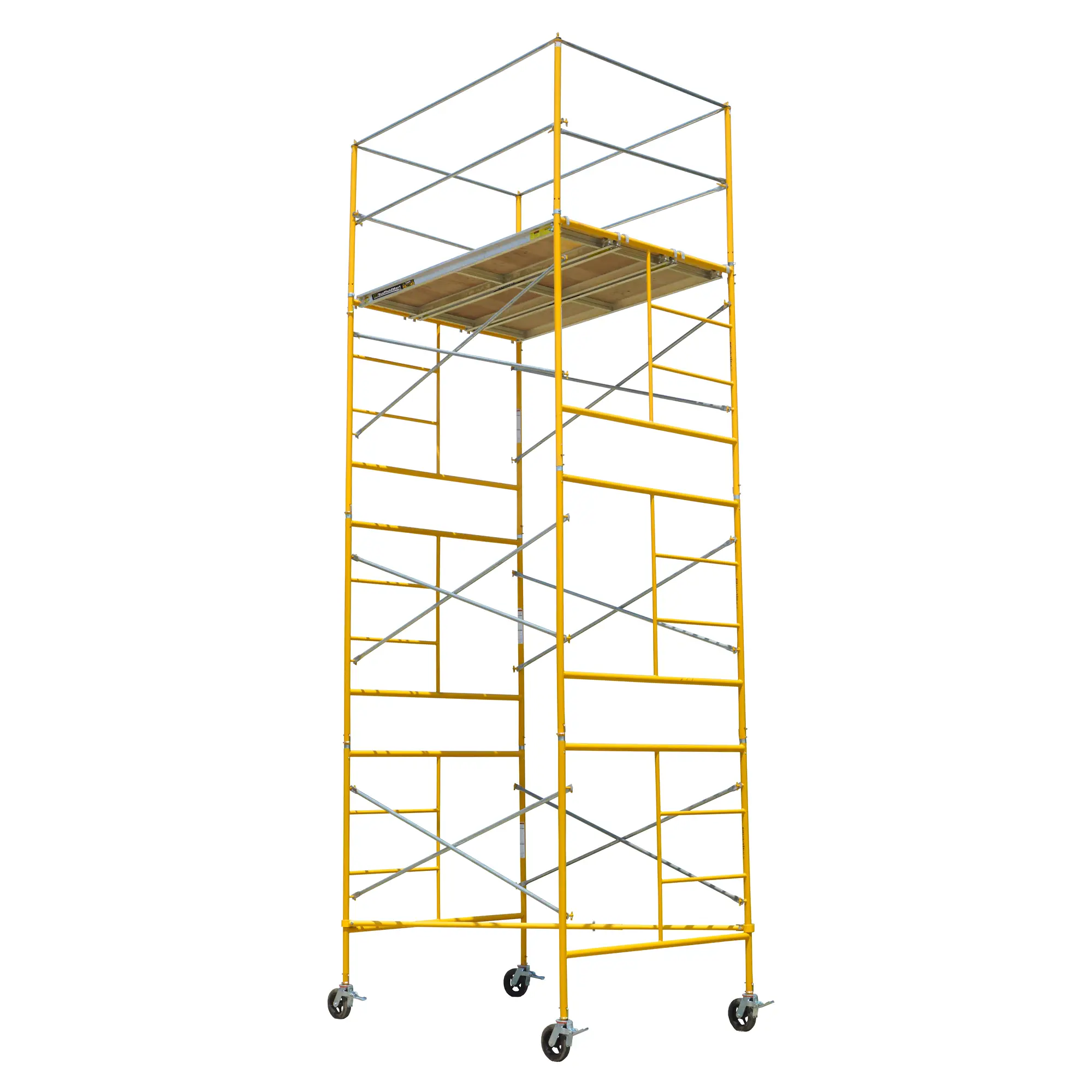

16 ft Standard Rolling Scaffold Tower
SKU: TS16SR
Included:
- (6) 5′ X 5′ Ladder Scaffolding Frames
- (6) 7′ Cross Braces
- (12) Galvanized Stack Pins
- (12) Galvanized Spring Rivets
- (3) 7′ Regular-Duty Aluminum/Plywood Walkboards
- (4) Female Safety Poles
- (4) 5’ Safety Rails
- (4) 7’ Safety Rails
- (4) 8” Cast-Iron Wheels
- (16) Pigtails
- (1) Grouser Bar
$949.00
| Weight | 568.4 lbs |
|---|---|
| Max Standing Height | 16' |
| Max Platform Size | 5' X 7' |
| Frame Dimensions | 5' W X 5' H |
| Frame Tube Outside Diameter | 1.625" |
| Frame Tube Wall Thickness | .090" |
| Distance Between Frames | 7' |
| Brace Lock Spacing | 27.75" |
| Walkboard Length | 7' |
| Walkboard Width | 19.25" |
| Stack Pin Length | 9" |
| Stack Pin Outside Diameter | 1.375" |
| Safety Pole Height | 42" |
| Tower Type | Rolling |
